Thermal Images
 |
Thermal images of electronics, kits, projects etc. |
Electronics
 |
 |
|||

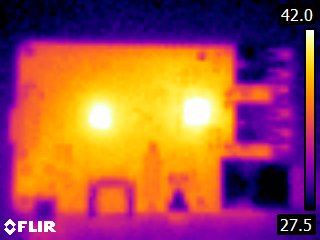

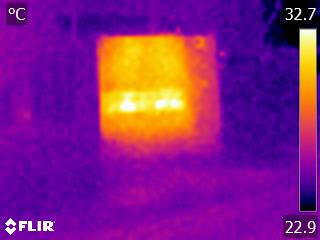

| Raspberry Pi 2 (50mm lens) | Re:load 2 (under load) | |||
 |
 |
|||

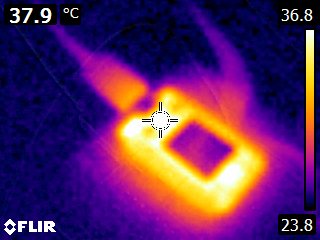

Spark Core (on breadboard) |
||||
 |
 |
|||

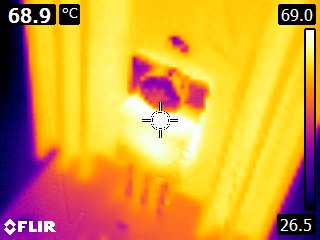

| The Spark Core, but this time using a 101mm focal length lens placed in front of the FLIR's lens. | A close up of the Desktop Temperature kits's resistors. Using a 101mm focal length lens placed in front of the FLIR's lens. Note that 5 resistors on the left side on active, and 6 on the right side. The device was showing 20 (degrees C). | |||
 |
 |
|||
| The Spark Core, but this time using a 50mm focal length lens placed in front of the FLIR's lens. | The Spark Core, but this time using a 50mm focal length lens placed in front of the FLIR's lens. | |||
 |
 |
|||

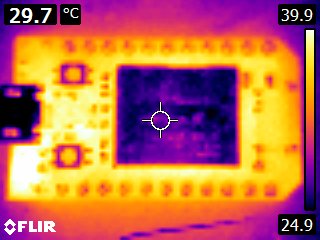

| The Espruino development board (with 50mm lens). | The Espruino development board (with 50mm lens). | |||
